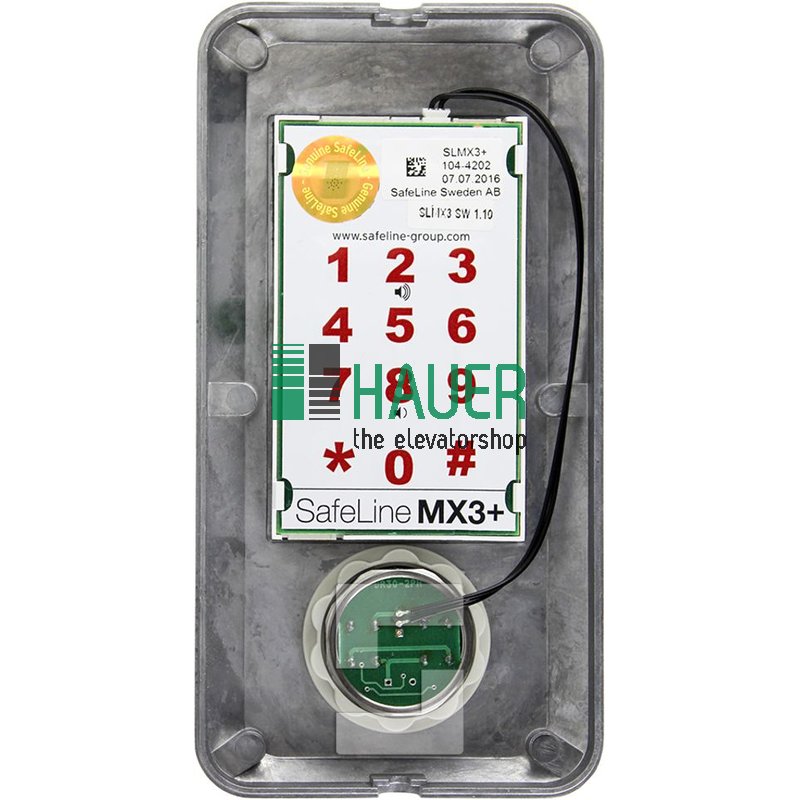

Safe Line, Alarm MX3 Plus, with pictogr. and push btn, surf. mount
Technical information:<?xml:namespace prefix = "o" ns = "urn:schemas-microsoft-com:office:office" />
Power supply: 123 VDC
Current consumption:
Normal mode: 50 mA / 12 VDC
Online mode: 160 mA / 12 VDC
Power supply (LED): 789 VDC
Power supply (pictogram LEDs): 987 VDC
Max. output current:
Normal mode: 50 mA / 12 VDC
Online mode: 160 mA / 12 VDC
Description:

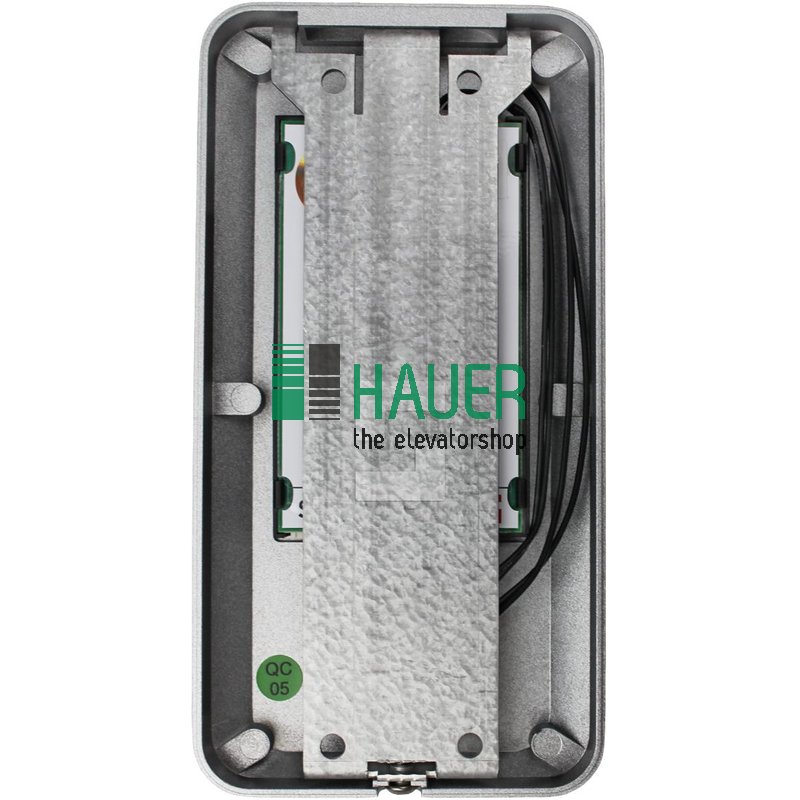

This version of the SafeLine MX3+ is designed for surface mounting. Installation is quick and easy with just two screws. The unit features a uniform surface design in Dark Matter Black, with integrated pictograms and alarm push button.
The MX3+ is likely the smallest lift emergency phone currently available. With minimal cabling required, this EN 81-28 compliant unit is one of our most installation-friendly solutions ideal for space-limited installations.
Connect using the included plug-and-play cables, mount with the supplied bracket, and configure easily via the SafeLine LYNX app. For system expansion, simply add an extra voice station, e.g. on the car roof only one unit per lift car is needed.
Optional: Combine with the modular GL6 GSM unit for battery backup and full 4G VoLTE compatibility (supports up to 9 MX3 units).
